How Do Circuit Breakers Work?

Circuit breakers monitor current that runs through a circuit and disconnects power as soon as the breaker detects a fault. They are also designed to work over and over, unlike fuses that must be replaced after they blow.

The simplest breakers have a switch connected to either a bimetallic strip or an electromagnet. When the switch is flipped to the “on” position, electricity flows through the bimetallic strip or electromagnet coil to the contacts and then out the upper terminal.

They’re Similar to Fuses

A circuit breaker is a mechanical safety device that disconnects the current when it jumps over a specific safe rate. It works a little differently than a fuse, though. A fuse prevents damage to certain equipment by heating a metal alloy inside and then breaking, whereas a circuit breaker is designed to trip and disconnect the current mechanically, but can be reset afterwards.

Both devices are intended to cut off power when four dangerous situations occur: an overloaded circuit, a short circuit, a ground fault or an arc fault. Circuit breakers are able to detect these conditions quickly and shut off the flow of electricity automatically. Fuses require more manual action to detect these situations, and they can only work once before they have to be replaced.

A modern circuit breaker is usually comprised of a simple switch attached to an electromagnet or bimetallic strip. When the switch is on, the current runs through this mechanism and creates a magnetic field. When the current is too high, it causes the magnetic field to activate and pull down a metal lever that is connected to the switch linkage, shutting off the electricity.

Another way the breaker can detect an overload is when it sees a very quick increase in current. This is usually because of too many energy-demanding devices being plugged into the same circuit. The breaker will detect this situation by sensing the temperature of the wires and looking for any abnormal changes in the flow of current.

The breaker is also able to distinguish between an overload and a short circuit by the amount of time it takes for the current to rise from normal to unsafe levels. A short circuit presents itself in a much shorter time than an overload, and is typically multiples of the load’s normal rated current. This type of current presents the greatest threat to a circuit and is typically the reason why fuses blow.

They’re Designed to Work Over and Over

Circuit breakers are a very important safety device in our homes. They prevent fires, damage to electrical devices, and other dangerous scenarios by shutting off power to a circuit when current levels become unsafe. This is sometimes referred to as overcurrent protection. They’re designed to work over and over, unlike fuses which are single-use items that need to be replaced after they blow out from too much current flow.

They’re also more versatile than fuses, and can be reset once the situation is corrected. This is a huge benefit, because it allows for more flexibility and reliability of electrical systems. They’re used in everything from small devices that protect low-current household appliances, to large switchgear that monitors high voltage circuits that power entire cities.

Like any system, there’s a limit to how much energy it can handle at one time. If too much electricity is pushed through a wire, it will heat up, and can degrade or melt the insulation around it. When this happens, the wire is no longer able to carry the excess current, and it begins to push back against itself. This generates a lot of heat, and can cause the wire to short out or even explode (Fig A).

The circuit breaker is designed to sense this, and automatically “trip” when it reaches its limit, stopping power from flowing through the wire. It’s a simple process, but it keeps us and our families safe.

There are two different kinds of circuit breaker technology that we use to accomplish this: thermal and magnetic. The basic design consists of a switch connected to either a bimetallic strip or an electromagnet. When the switch is flipped to the on position, electricity can flow from the bottom terminal, up through the electromagnet coil, across the stationary contact and out the upper terminal.

The difference between this and a fuse is that when the switch is flipped to the off position, the bimetallic strip or the electromagnet bends, stopping the current flow. This can be done via thermal or magnetic effects, although the most common is a thermal tripping mechanism that uses the heat generated by the excess current to improve the mechanical advantage of the electromagnet and trip the switch.

They’re Safer than Fuses

Unlike fuses, circuit breakers don’t rely on heat to work. They simply shut off power when they sense that current is flowing at a rate faster than the safe limit. This prevents overheating and fires from happening and keeps the circuit safe.

To do this, a circuit breaker uses either a magnetic sensing element or a mechanical trip mechanism. The former features a magnetic coil that is wrapped around a plunger that is held in place by a spring. When the current in the circuit exceeds a safe level, it passes through the coil and produces a force that is greater than the retaining spring. This causes the plunger to move and open the breaker’s contacts.

The electrical wires in your house are designed to work as a system, but that system has its limits. If you try to push more power through a wire than it was built for, it will begin to heat up and melt the insulation. This is how most electrical fires happen, and it can be very dangerous for anyone in the area. The point of a fuse is to quickly stop the flow of electricity before this happens, but if it blows too many times in a short period of time, you’re going to need to buy more fuses and waste more money.

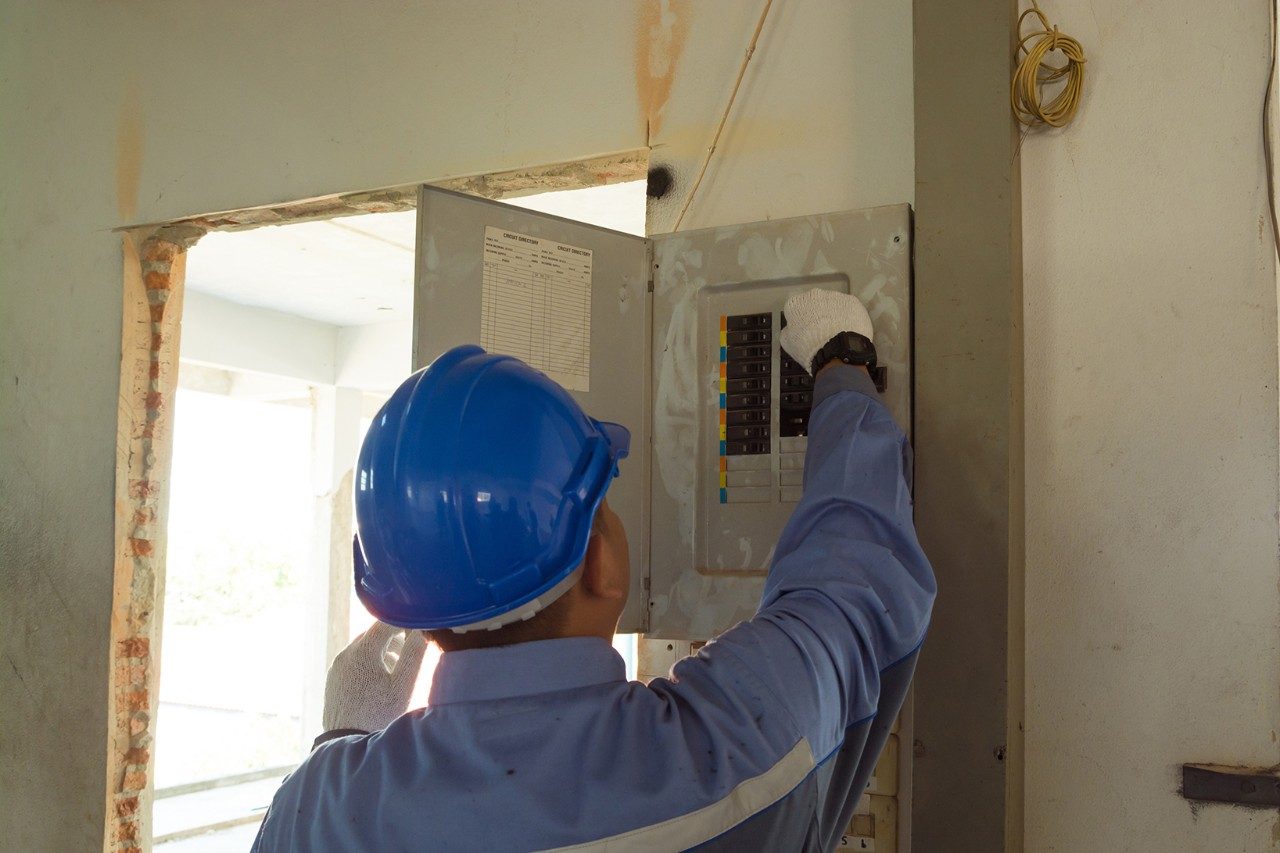

By comparison, a circuit breaker will shut off the power to the wires when there’s too much current, and it will stay off until you physically go to the breaker panel and turn it back on. You can also use a breaker to control the power remotely, which is not possible with fuses.

In addition, breakers can have extra safeguards such as GFCI protection that fuses cannot add. The main benefit though is that they are much safer to work with than fuses and don’t require you to handle live electricity when getting them back in service – as long as you know how to reset the operating handles. Lastly, one breaker can be used for multiple power ratings instead of having to replace different sized fuses, which is a big cost saving in the long run.

They’re More Affordable

The basic way circuit breakers work is by monitoring the electrical current that runs through a conductor. They are able to disconnect power when the current becomes too high or when there is another problem in your house’s wiring. This will protect you from electrical fires and other dangerous situations. There are many different types of circuit breakers, including GFCIs and AFCIs. They all function differently and have their own unique safety features. These special features may increase the price of a breaker.

There are also differences in cost between brand-name and no-name brands. Generally speaking, the more established and well-known the brand is, the higher the price. This is because the manufacturer puts a lot of time and effort into creating circuit breakers that are as safe as possible.

When it comes to the actual circuit breaker design, there are a few different ways that they can detect an unsafe current and stop it before it causes damage. Some use an electromagnet section, while others have a bi-metal strip or solenoid. The way they all work is that when current passes through them, it travels up the strip or solenoid. If the current goes above what they are rated for, it will cause the metal blade to bend or push into the switch, which then cuts off the current.

Aside from detecting a current that is too high to handle, other circuit breakers also have special components that can detect other problems and prevent them from becoming dangerous. For example, GFCIs are built to detect current leaks that could lead to electric shock. They do this by comparing the current that is flowing through the hot wire with the current that is coming back out of the neutral wire. If there is a difference in the flow of current, it means that there is a leak and that it’s not safe to continue using that outlet.

Another thing that makes a circuit breaker safer than a fuse is that it can keep working over and over again. Fuses only work once, and then they must be replaced. Circuit breakers can be reset, and they will continue to work as long as they are in good condition. If the breaker trips, it’s a sign that something is wrong and that you should contact P2 Electrical Contracting to see what the problem is.
